  • QJ9A0832
  • QJ9A0832

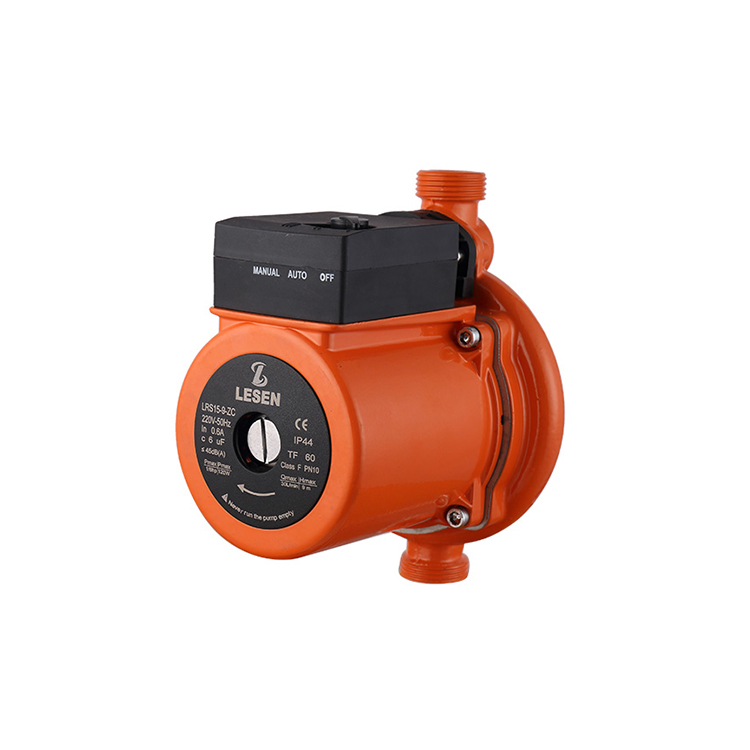

QJ9A0832

Pump Body:Cast iron
Rotor Can:Stainless Steel
Bearing:Ceramic/Graphite
Impeller:PP/Stainless Steel
Shaft:Ceramic/Stainless Steel
Insulation Class:F
Motor Housing:Aluminium
Back Plate:Stainless Steel
Protection Class:IP 44
+86-18869976464 Contact Us
  • Description
  • inquiry
  • （Model） Power
    (W)    		 Voltage
    (V)    		 Frequency
    (Hz)    		 Connection size
    (IN)    		 Rotating speed
    (r/min)    		 Maximum lift
    (m)    		 Maximum flow
    (L/min)    		 Inlet/Outlet
    (IN)    		 NW
    (Kg)
    LRS12/9-Z 120 110-127 220-240 50/60 3/4*1/2" 2580/3300 9 15
    LRS12/11-2 200 110-127 220-240 50/60 3/4**1/2" 2580/3300 11 20
    LRS20/15-Z 260 110-127 220-240 50/60 1**3/4" 2580/3300 15 45
    LRS12/9-ZG 100 110-127 220-240 50/60 3/4**1/2" 2520/3300 9 15
    LRS15/9-ZG 100 110-127 220-240 50/60 1"3/4" 2520/3300 9 30
    LRS15/12-ZG 200 110-127 220-240 50/60 1*3/4" 2520/3300 12 45
    LRS15/15-ZG 300 110-127 220-240 50/60 1*"3/4" 2520/3300 15 55
    LRS12/9-Z 100 110-127220-240 50/60 3/4"X1/2" 2520/3330 9 15
    LRS15/9-Z 100 110-127220-240 50/60 1"X3/4" 2520/3330 9 30
    LRS15/12-Z 200 110-127220-240 50/60 1"X3/4" 2520/3330 12 45
    LRS15/15-Z 300 110-127 220-240 50/60 1"X3/4" 2520/3330 15 55
    LRS15/4 72/53/38 4.5/4/3 39/29/18 1" 2.1
    LRS25/4-130 72/53/38 4.5/4/3 49/35/21 1%" 2.2
    LRS25/4-180 72/53/38 4.5/4/3 57/39/21 1%" 2.4
    LRS32/4 72/53/38 4.5/4/3 66/44/22 2" 2.6
    LRS15/6 93/67/46 2006/5/3 48/35/21 1" 2.3
    LRS20/6 93/67/46 2006/5/3 55/38/22 1%" 2.4
    LRS25/6-130 93/67/46 2006/5/3 55/38/22 1%" 2.4
    LRS25/6-180 93/67/46 2006/5/3 69/48/26 1%" 2.6
    LRS32/6 93/67/46 2006/5/3 70/48/26 2" 2.8
    LRS15/7 135/93/67 2007/6/5 55/45/29 1" 2.6
    LRS25/7-130 135/93/67 7/6.5/4.5 64/51/32 1%" 2.8
    LRS26/7-180 135/93/67 7/6.5/4.5 69/54/35 1%" 2.9
    LRS32/7 135/93/67 7/6.5/4.5 70/56/36 2" 3.1
    LRS15/8 165/115/75 2008/7/5 65/42/22 1" 3.3
    LRS15/8 165/115/75 2008/7/5 98/63/36 1%" 3.4
    LRS25/8 270/210/150 8/7.5/65 160/103/43 2" 4.8
    LRS32/8 165/115/75 11/7/3.4 35/20/10 1" 3.9
    LRS20/11 245/220/145 2012/11/7 52/32/22 1" 4.5
    LRS20/12 245/220/145 2012/11/7 62/37/23 1%" 4.5
    LRS25/12 270/210/150 14/13/10 68/48/28 1%" 5.1
