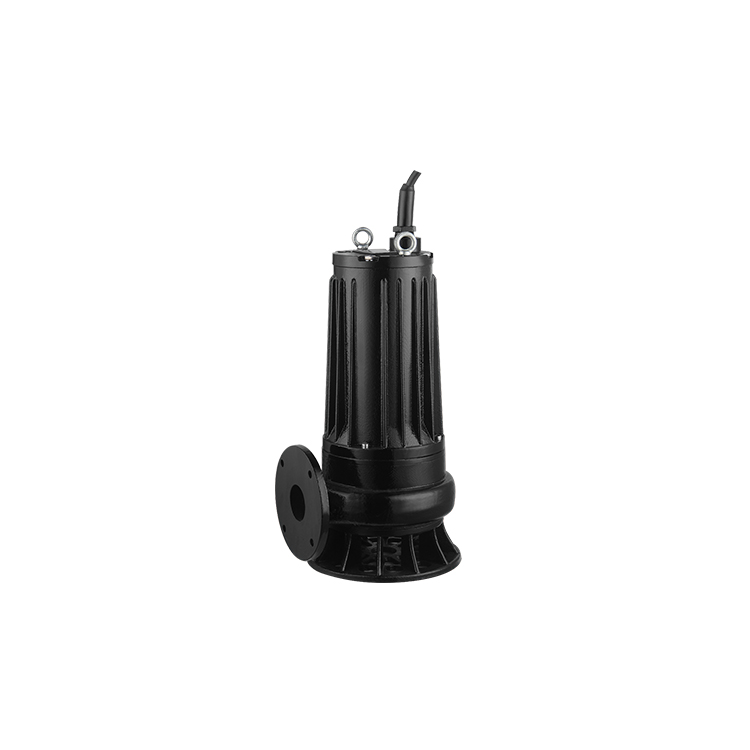

Solid Cast Iron WQK Sewage Pump

1. Mecdium temperature not more than +40℃
2. Mecdium pH value between 5 and 9
3. When working for a long time, the motor of the pump is allowed to be exposed to the liquid level, not more than 1/
2 of the height of the motor
4. Average weight of medium shal not exceed 500kg /dm³
+86-18869976464 Contact Us
  • Description
  • inquiry
  • （Model） Flow
    (m³/h)    		 Lift
    (m)    		 Power
    (Kw)    		 Voltage
    (V)    		 Frequency
    (Hz)
    Rotating speed
    (r/min)    		 Piping
    (mm)
    50JYWQD10-10-1000-0.75 10 10 0.75 220 50 1000 50
    50JYWQ10-10-1000-0.75 10 10 0.75 380 50 1000 50
    50JYWQD7-15-1200-1.1 7 15 1.1 220 50 1200 50
    50JYWQ7-15-1200-1.1 7 15 1.1 380 50 1200 50
    65JYWQD15-9-1200-1.1 15 9 1.1 220 50 1200 65
    65JYWQ15-9-1200-1.1 15 9 1.1 380 50 1200 65
    50JYWQD15-15-1200-1.5 15 15 1.5 220 50 1200 50
    50JYWQ15-15-1200-1.5 15 15 1.5 380 50 1200 50
    65JYWQD25-10-1200-1.5 25 10 1.5 380 50 1200 65
    65JYWQ25-10-1200-1.5 25 10 1.5 380 50 1200 65
    50JYWQ9-22-1600-2.2 9 22 2.2 380 50 1600 50
    65JYWQ25-15-1600-2.2 25 12 2.2 380 50 1600 65
    80JYWQ40-10-1600-2.2 40 10 2.2 380 50 1600 80
    100JYWQ50-7-1600-2.2 50 7 2.2 380 50 1600 100
    50JYWQ15-30-1600-3 15 30 3 380 50 1600 50
    65JYWQ20-30-1600-4 20 30 4 380 50 1600 65
    80JYWQ40-15-1600-4 40 15 4 380 50 1600 80
    100JYWQ60-10-1600-4 60 10 4 380 50 1600 100
    50JYWQ15-40-1600-5.5 15 40 5.5 380 50 1600 50
    65JYWQ25-35-1600-5.5 25 35 5.5 380 50 1600 65
    80JYWQ30-30-1600-5.5 30 30 5.5 380 50 1600 80
    100JYWQ70-10-1600-5.5 70 10 5.5 380 50 1600 100
    150JYWQ100-7-1600-5.5 100 7 5.5 380 50 1600 150
    50JYWQ15-45-1600-7.5 15 45 7.5 380 50 1600 50
    65JWYQ25-40-1600-7.5 25 40 7.5 380 50 1600 65
    80JYWQ65-22-1600-7.5 65 22 7.5 380 50 1600 80
    100JYWQ80-20-1600-7.5 80 20 7.5 380 50 1600 100
    150JYWQ100-10-1600-7.5 100 10 7.5 380 50 1600 150
    WQD6-16-0.75 6 16 0.75 220 50 2860 50
    WQ6-16-0.75 6 16 0.75 380 50 2860 50
    WQD8-18-1.1 8 18 1.1 220 50 2860 50
    WQ8-18-1.1 8 18 1.1 380 50 2860 50
    WQD8-16-1.1 8 16 1.1 220 50 2860 50
    WQ8-16-1.1 8 16 1.1 380 50 2860 50
    WQD8-26-1.1 8 26 1.1 220 50 2860 50
    WQ8-26-1.1 8 26 1.1 380 50 2860 50
    WQD10-16-1.1 10 16 1.1 220 50 2860 50
    WQ10-16-1.1 10 16 1.1 380 50 2860 50
    WQD12-18-1.5 12 18 1.5 220 50 2860 50
    WQ12-18-1.5 12 18 1.5 380 50 2860 50
    WQ015-18-1.5 15 18 1.5 220 50 2860 50
    WQ15-18-1.5 15 18 1.5 380 50 2860 50
    WQD8-20-1.5 8 20 1.5 220 50 2860 50
    WQ8-20-1.5 8 20 1.5 380 50 2860 50
    WQD15-15-1.5 15 15 1.5 220 50 2860 65
    WQ15-15-1.5 15 15 1.5 380 50 2860 65
    WQD30-10-1.5 30 10 1.5 220 50 2860 75
    WQ30-10-1.5 30 10 1.5 380 50 2860 75
    WQD8-40-1.5 8 40 1.5 220 50 2860 50
    WQ8-40-1.5 8 40 1.5 380 50 2860 50
    WQ10-30-2.2 10 30 2.2 380 50 3000 50
    WQ15-32-2.2 15 32 2.2 380 50 3000 50
    WQ20-25-2.2 20 25 2.2 380 50 3000 65
    WQ30-15-2.2 30 15 2.2 380 50 3000 75
    WQ15-36-3 15 36 3 380 50 3000 50
    WQK10-10-0.75QG 10 10 0.75 220/380 50 2860 50
    WQK15-9-1.10G 15 9 1.1 220/380 50 2860 50
    WQK15-15-1.50G 15 15 1.5 220/380 50 2860 50
    WQK26-7-1.50G 26 7 1.5 220/380 50 2860 80
    WQK18-20-2.20G 18 20 2.2 380 50 2860 50
    WQK25-15-2.20G 25 15 2.2 380 50 2860 65
    WQK30-10-2.20G 30 10 2.2 380 50 2860 80
    WQK20-25-3QG 20 25 3 380 50 2860 50
    WQK30-16-3QG 30 16 3 380 50 2860 65
    WQK35-15-3QG 35 15 3 380 50 2860 80
    WQK40-13-3QG 40 13 3 380 50 2860 100
    WQK25-28-4QG 25 28 4 380 50 2860 50
    WQK32-20-4QG 32 20 4 380 50 2860 65
    WQK42-16-4QG 42 16 4 380 50 2860 80
    WOK50-12-4QG 50 12 4 380 50 2860 100
    WQK25-40-5.5QG 25 40 5.5 380 50 2860 50
    WQK40-28-5.5QG 40 28 5.5 380 50 2860 65
    WQK60-18-5.5QG 60 18 5.5 380 50 2860 80
    WQK80-10-5.5QG 80 10 5.5 380 50 2860 100
    WQK50-22-7.5QG 50 22 7.5 380 50 2860 80
    WQK80-20-7.5QG 80 20 7.5 380 50 2860 100
    QX8-40-1.5 8 40 1.5 220/380 50 2860 50
    QX10-35-2.2 10 35 2.2 380 50 2860 50
    QX10-45-3 10 45 3 380 50 2860 50
    QX12-50-4 12 50 4 380 50 2860 50
    QX12.5-60-5.5 12.5 60 5.5 380 50 2860 50
    QX15-68-7.5 15 68 7.5 380 50 2860 50
    Company Profile

    Zhejiang Shuyilin Electromechanical Co., Ltd.Our Company Mainly Deals In Water Pumps.The company has many years of experience in the production of small, Solid Cast Iron WQK Sewage Pump and medium-sized motor water pumps.The product specifications are complete and diverse, the design is advanced, the materials are selected, the technology is advanced and unique, and it has the advantages of excellent performance, safe and reliable use, and durability. It has won unanimous praise from customers at home and abroad.

    The company mainly produces submersible pumps, deep well pumps, sewage pumps, self-priming pumps, screw pumps, multi-stage submersible pumps, canned motor pumps and more than a dozen series and more than 300 products.All national standard motors, the head and flow are actually marked, the movement adopts high-grade all copper wire and cold-rolled silicon steel strip, wide voltage, low temperature rise, longer life, higher efficiency, and more power! Long-lasting uninterrupted operation without pressure!
