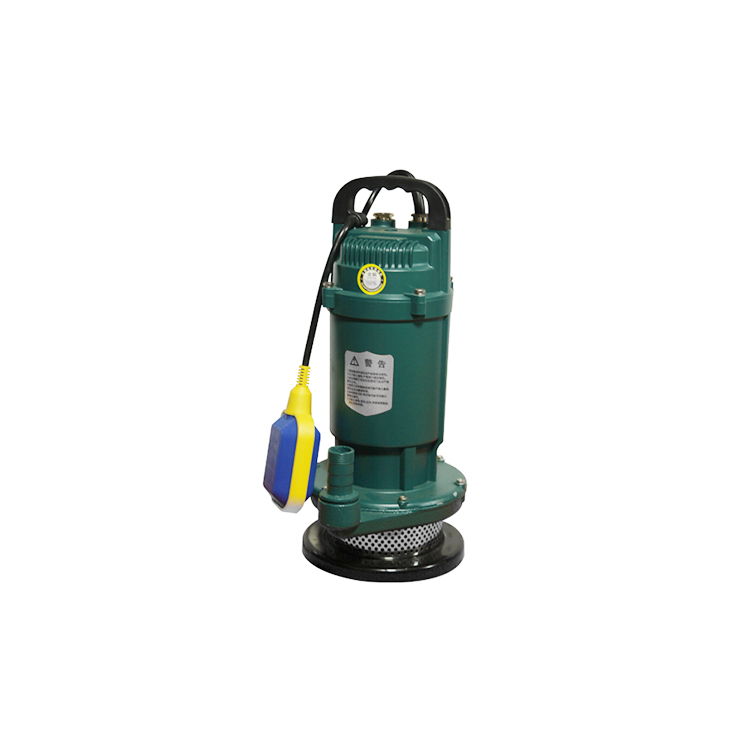

QDX Submersible Pump With Float Switch

CONDITION：
1.Medium temperature is not more than +40 DEGC
2.Medium pH value between 6.5～8.5
3.Containing solid impurities in the medium volume ratio
of not more than 0.1%
4.Diving depth of up to 100m
5.Only pumping water pump
+86-18869976464 Contact Us
  • Description
  • inquiry
  • （Model） Flow
    (m³/h)    		 Lift
    (m)    		 Power
    (Kw)    		 Voltage
    (V)    		 Frequency
    (Hz)
    Rotating speed
    (r/min)    		 Piping
    (mm)
    QDX1.5-16-0.37 1.5 16 0.37 220 50 2860 25
    QDX2-18-0.4 2 18 0.4 220 50 2860 25
    QDX1.5-20-0.55 1.5 20 0.55 220 50 2860 25
    QDX3-20-0.55 3 20 0.55 220 50 2860 25
    QDX7-14-0.55 7 14 0.55 220 50 2860 40
    QDX3-24-0.75 3 24 0.75 220 50 2860 25
    QDX3-28-0.75 3 28 0.75 220 50 2860 25
    QDX1.5-33-0.75 1.5 33 0.75 220 50 2860 25
    QDX7-18-0.75 7 18 0.75 220 50 2860 40
    QDX10-18-0.75 10 18 0.75 220 50 2860 50
    QDX1.5-32-1.1 1.5 32 1.1 220 50 2860 25
    QDX2-32-1.1 2 32 1.1 220 50 2860 25
    QDX8-28-1.1 8 28 1.1 220 50 2860 50
    QDX10-20-1.1 10 20 1.1 220 50 2860 50
    QDX20-15-1.1 20 15 1.1 220 50 2860 65
    QDX15-28-1.5 15 28 1.5 220 50 2860 50
    QDX25-15-1.5 25 15 1.5 220 50 2860 65
    QDX35-10-1.5 35 10 1.5 220 50 2860 75
    QDX55-10-2.2 55 10 2.2 380 50 2860 100
    QX1.5-16-0.37 1.5 16 0.37 380 50 2860 25
    QX2-18-0.4 2 18 0.4 380 50 2860 25
    QX1.5-20-0.55 1.5 20 0.55 380 50 2860 25
    QX3-20-0.55 3 20 0.55 380 50 2860 25
    QX7-14-0.55 7 14 0.55 380 50 2860 40
    QX3-24-0.75 3 24 0.75 380 50 2860 25
    QX3-28-0.75 3 28 0.75 380 50 2860 25
    QX1.5-33-0.75 1.5 33 0.75 380 50 2860 25
    QX7-18-0.75 7 18 0.75 380 50 2860 40
    QX10-18-0.75 10 18 0.75 380 50 2860 50
    QX1.5-32-1.1 1.5 32 1.1 380 50 2860 25
    QX2-32-1.1 2 32 1.1 380 50 2860 25
    QX8-28-1.1 8 28 1.1 380 50 2860 50
    QX10-20-1.1 10 20 1.1 380 50 2860 50
    QX20-15-1.1 25 15 1.1 380 50 2860 65
    QX15-28-1.5 15 28 1.5 380 50 2860 50
    QX25-15-1.5 25 15 1.5 380 50 2860 65
    QX35-10-1.5 35 10 1.5 380 50 2860 75
    QX55-10-2.2 55 10 2.2 380 50 2860 100
    QDX1.5-16-0.37(T) 1.5 16 0.37 220 50 2860 25
    QDX2-18-0.4(T) 2 18 0.4 220 50 2860 25
    QDX3-18-0.55(T) 1.5 18 0.55 220 50 2860 25
    QDX3-24-0.75(T) 3 24 0.75 220 50 2860 25
    QDX15-10-0.75(T) 7 10 0.75 220 50 2860 25
    QDX2-36-1.1(T) 3 36 1.1 220 50 2860 25
