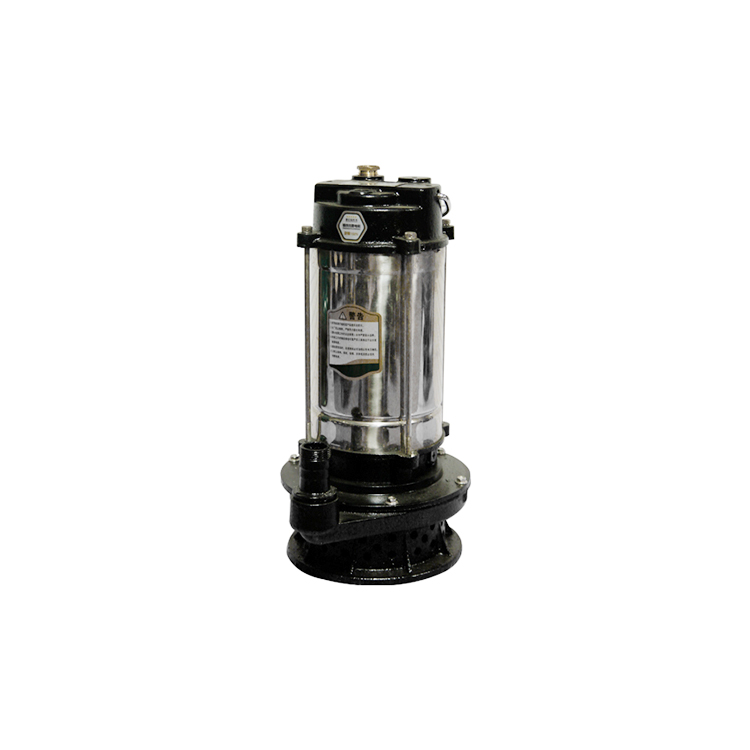

VSM

CONDITION：
1.Medium temperature is not more than +40 DEGC
2.Medium pH value between 6.5～8.5
3.Containing solid impurities in the medium volume ratio
of not more than 0.1%
4.Diving depth of up to 100m
5.Only pumping water pump
+86-18869976464 Contact Us
  • Description
  • inquiry
  • （Model） Flow
    (m³/h)    		 Lift
    (m)    		 Power
    (Kw)    		 Voltage
    (V)    		 Frequency
    (Hz)
    Rotating speed
    (r/min)    		 Piping
    (mm)
    QDX1.5-16-0.37 1.5 16 0.37 220 50 2860 25
    QDX2-18-0.4 2 18 0.4 220 50 2860 25
    QDX1.5-20-0.55 1.5 20 0.55 220 50 2860 25
    QDX3-20-0.55 3 20 0.55 220 50 2860 25
    QDX7-14-0.55 7 14 0.55 220 50 2860 40
    QDX3-24-0.75 3 24 0.75 220 50 2860 25
    QDX3-28-0.75 3 28 0.75 220 50 2860 25
    QDX1.5-33-0.75 1.5 33 0.75 220 50 2860 25
    QDX7-18-0.75 7 18 0.75 220 50 2860 40
    QDX10-18-0.75 10 18 0.75 220 50 2860 50
    QDX1.5-32-1.1 1.5 32 1.1 220 50 2860 25
    QDX2-32-1.1 2 32 1.1 220 50 2860 25
    QDX8-28-1.1 8 28 1.1 220 50 2860 50
    QDX10-20-1.1 10 20 1.1 220 50 2860 50
    QDX20-15-1.1 20 15 1.1 220 50 2860 65
    QDX15-28-1.5 15 28 1.5 220 50 2860 50
    QDX25-15-1.5 25 15 1.5 220 50 2860 65
    QDX35-10-1.5 35 10 1.5 220 50 2860 75
    QDX55-10-2.2 55 10 2.2 380 50 2860 100
    QX1.5-16-0.37 1.5 16 0.37 380 50 2860 25
    QX2-18-0.4 2 18 0.4 380 50 2860 25
    QX1.5-20-0.55 1.5 20 0.55 380 50 2860 25
    QX3-20-0.55 3 20 0.55 380 50 2860 25
    QX7-14-0.55 7 14 0.55 380 50 2860 40
    QX3-24-0.75 3 24 0.75 380 50 2860 25
    QX3-28-0.75 3 28 0.75 380 50 2860 25
    QX1.5-33-0.75 1.5 33 0.75 380 50 2860 25
    QX7-18-0.75 7 18 0.75 380 50 2860 40
    QX10-18-0.75 10 18 0.75 380 50 2860 50
    QX1.5-32-1.1 1.5 32 1.1 380 50 2860 25
    QX2-32-1.1 2 32 1.1 380 50 2860 25
    QX8-28-1.1 8 28 1.1 380 50 2860 50
    QX10-20-1.1 10 20 1.1 380 50 2860 50
    QX20-15-1.1 25 15 1.1 380 50 2860 65
    QX15-28-1.5 15 28 1.5 380 50 2860 50
    QX25-15-1.5 25 15 1.5 380 50 2860 65
    QX35-10-1.5 35 10 1.5 380 50 2860 75
    QX55-10-2.2 55 10 2.2 380 50 2860 100
    QDX1.5-16-0.37(T) 1.5 16 0.37 220 50 2860 25
    QDX2-18-0.4(T) 2 18 0.4 220 50 2860 25
    QDX3-18-0.55(T) 1.5 18 0.55 220 50 2860 25
    QDX3-24-0.75(T) 3 24 0.75 220 50 2860 25
    QDX15-10-0.75(T) 7 10 0.75 220 50 2860 25
    QDX2-36-1.1(T) 3 36 1.1 220 50 2860 25
    Company Profile

    Zhejiang Shuyilin Electromechanical Co., Ltd.Our Company Mainly Deals In Water Pumps.The company has many years of experience in the production of small, VSM and medium-sized motor water pumps.The product specifications are complete and diverse, the design is advanced, the materials are selected, the technology is advanced and unique, and it has the advantages of excellent performance, safe and reliable use, and durability. It has won unanimous praise from customers at home and abroad.

    The company mainly produces submersible pumps, deep well pumps, sewage pumps, self-priming pumps, screw pumps, multi-stage submersible pumps, canned motor pumps and more than a dozen series and more than 300 products.All national standard motors, the head and flow are actually marked, the movement adopts high-grade all copper wire and cold-rolled silicon steel strip, wide voltage, low temperature rise, longer life, higher efficiency, and more power! Long-lasting uninterrupted operation without pressure!
