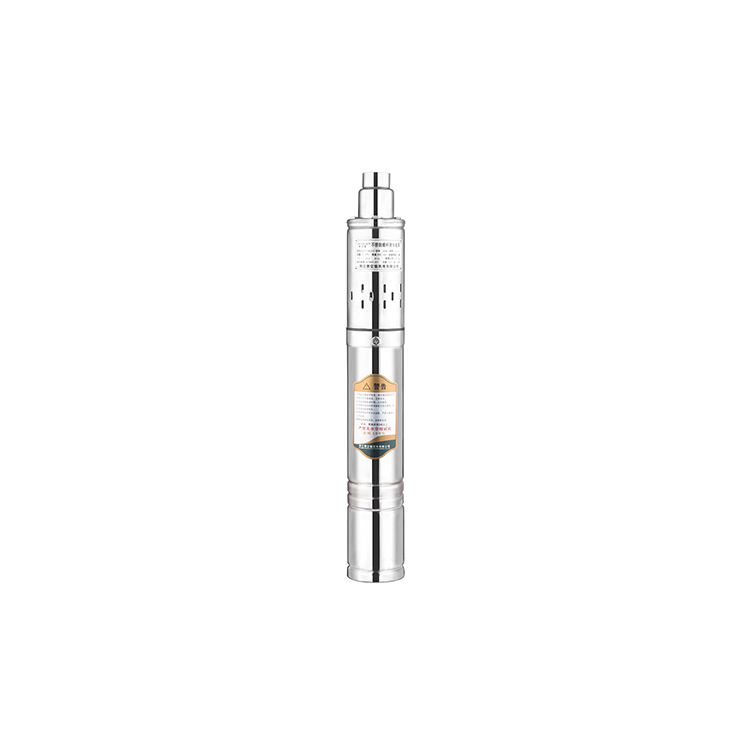

Screw pump 3QGD

1. Medum temperature not more than +40℃
2. The pH value of the medum is between 6.5-8.5
3. The mass ratio of solid magazine shall not exceed 3%, the particle size shall not exceed 2 mm, and the fiber length shall not exceed 0.3 times of the rotor pitch
+86-18869976464 Contact Us
  • Description
  • inquiry
  • （Model） Flow
    (m³/h)    		 Lift
    (m)    		 Power
    (Kw)    		 Voltage
    (V)    		 Frequency
    (Hz)
    Rotating speed
    (r/min)    		 Piping
    (mm)
    QGD1.2-50-0.37 1.2 50 0.37 220 50 2860 25
    QGD1.8-55-0.55 1.8 55 0.55 220 50 2860 25
    QGD1.2-60-0.75 1.2 60 0.75 220 50 2860 25
    QGD1.2-60-0.8 1.2 60 0.8 220 50 2860 25
    QGD2-70-0.9 2 70 0.9 220 50 2860 25
    QGD2-80-0.95 2 80 0.95 220 50 2860 25
    QGD2-120-1.1 2 120 1.1 220 50 2860 25
    QGD2-150-2.2 2 150 2.2 220 50 2860 25
    100QJ(D)Y2-42/6-0.75 2 42 0.75 220/380 50 2860 25/40
    100QJ(D)Y2-56/8-1.1 2 56 1.1 220/380 50 2860 25/40
    100QJ(D)Y2-70/10-1.2 2 70 1.2 220/380 50 2860 25/40
    100QJ(D)Y2-84/12-1.5 2 84 1.5 220/380 50 2860 25/40
    100QJ(D)Y2-98/14-1.8 2 98 1.8 220/380 50 2860 25/40
    100QJ(D)Y2-112/16-2.2 2 112 2.2 220/380 50 2860 25/40
    100QJ(DJY2-126/18-2.5 2 126 2.5 220/380 50 2860 25/40
    100QJ(D)Y2-140/20-2.8 2 140 2.8 220/380 50 2860 25/40
    100QJ(D)Y2-161/23-3 2 161 3 220/380 50 2860 25/40
    100QJ(D)Y2-175/25-3.2 2 175 3.2 220/380 50 2860 25/40
    100QJ(D)Y2-210/30-4 2 210 4 220/380 50 2860 25/40
    90QJ(DjY2-38/7-0.75 2 38 0.75 220/380 50 2860 25/40
    90QJ(D)Y-50/9-1.1 2 50 1.1 220/380 50 2860 25/40
    90QJ(D)Y2-60/11-1.2 2 60 1.2 220/380 50 2860 25/40
    90QJ(D)Y2-72/13-1.5 2 72 1.5 220/380 50 2860 25/40
    90QJ(D)Y2-82-15-1.5 2 82 1.8 220/380 50 2860 25/40
    90QJ(D)Y2-93/17-2.2 2 93 2.2 220/380 50 2860 25/40
    90QJ(D)Y2-105/19-2.5 2 105 2.5 220/380 50 2860 25/40
    90QJ(D)Y2-120/22-2.8 2 120 2.8 220/380 50 2860 25/40
