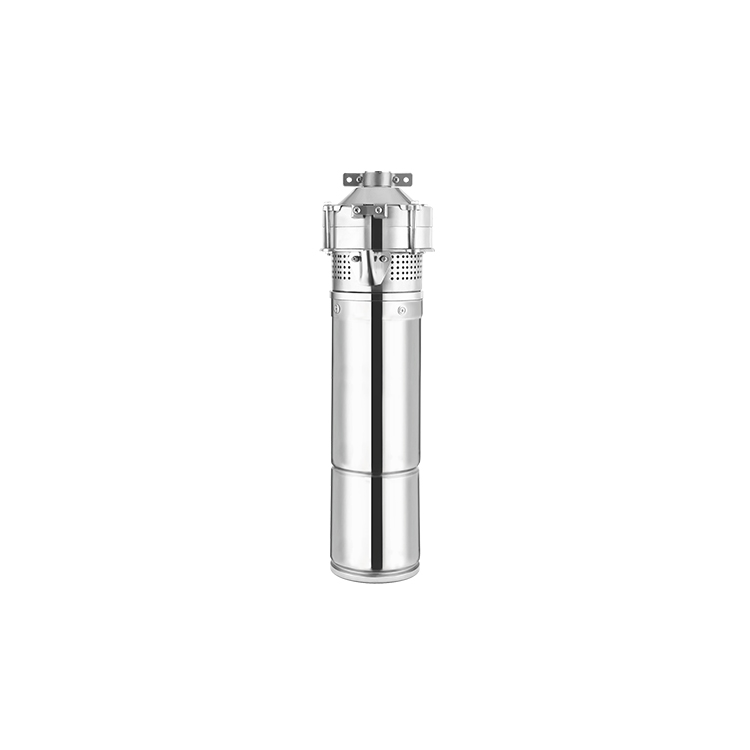

QDX submersible pump-Stainless Steel

CONDITION

1.Medium temperature is not more than +40 DEGC
2.Medium PH value between 6.5～8.5
3.Containing solid impurities in the medium volume ratio
of not more than 0.1%
4.Diving depth of up to 100m
5.Only pumping water pump

+86-18869976464 Contact Us

Description
inquiry

（Model）	Flow (m³/h)	Lift (m)	Power (Kw)	Voltage (V)	Frequency (Hz)	Rotating speed (r/min)	Piping (mm)
QD3-28/2-0.75	3	28	0.75	220	50	2860	25
QD4-40/3-0.85	4	40	0.85	220	50	2860	25
QD6-36/2-1.1	6	36	1.1	220	50	2860	25
QD8-50/3-1.5	8	50	1.5	220	50	2860	25
QD3-60/4-2.2	3	60	2.2	220	50	2860	25
QD3-80/5-2.5	3	80	2.5	220	50	2860	25
QD3-100/6-2.8	3	100	2.8	220	50	2860	25
QD10-26/2-1.8	10	26	1.8	220	50	2860	50
QD10-36/3-2.2	10	36	2.2	220	50	2860	50
Q3-28/2-0.75	3	28	0.75	380	50	2860	25
Q4-40/3-0.85	4	40	0.85	380	50	2860	25
Q6-36/2-1.1	6	36	1.1	380	50	2860	25
Q8-5/3-1.5	8	50	1.5	380	50	2860	25
Q3-60/4-2.2	3	60	2.2	380	50	2860	25
Q3-80/5-2.5	3	80	2.5	380	50	2860	25
Q3-100/6-2.8	3	100	2.8	380	50	2860	25
Q10-26/2-1.8	10	26	1.8	380	50	2860	50
Q10-36/3-2.2	10	36	2.2	380	50	2860	50
QY15-26-2.2	1.5	26	2.2	380	50	2860	50
QY25-17-2.2	2	17	2.2	380	50	2860	65
QY40-12-2.2	1.5	12	2.2	380	50	2860	75
QY65-7-2.2	3	7	2.2	380	50	2860	100
QY100-4.5-2.2	7	4.5	2.2	380	50	2860	150
QY15-36-3	3	36	3	380	50	2860	50
QY25-26-3	3	26	3	380	50	2860	65
QY40-16-3	1.5	16	3	380	50	2860	75
QY65-10-3	7	10	3	380	50	2860	100
QY100-6-3	10	6	3	380	50	2860	150
QY160-5-3	1.5	5	3	380	50	2860	150
QY12.5-50-4	2	50	4	380	50	2860	50
QY25-32-4	8	32	4	380	50	2860	65
QY40-21-4	10	21	4	380	50	2860	75
QY65-15-4	20	15	4	380	50	2860	100
QY100-9-4	15	9	4	380	50	2860	150
QY12.5-60-5.5	25	60	5.5	380	50	2860	50
QY25-40-5.5	35	40	5.5	380	50	2860	65
QY40-28-5.5	55	28	5.5	380	50	2860	75
QY65-19-5.5	1.5	19	5.5	380	50	2860	100
QY160-9-5.5	2	9	5.5	380	50	2860	150
QY250-6-5.5	1.5	6	5.5	380	50	2860	200
QY10-110/2-7.5	3	110	7.5	380	50	2860	50
QY25-50-7.5	7	50	7.5	380	50	2860	65
QY40-38-7.5	3	38	7.5	380	50	2860	75
QY80-22-7.5	3	22	7.5	380	50	2860	100
QY200-12-7.5	1.5	12	7.5	380	50	2860	150
QY260-8-7.5	7	8	7.5	380	50	2860	200
