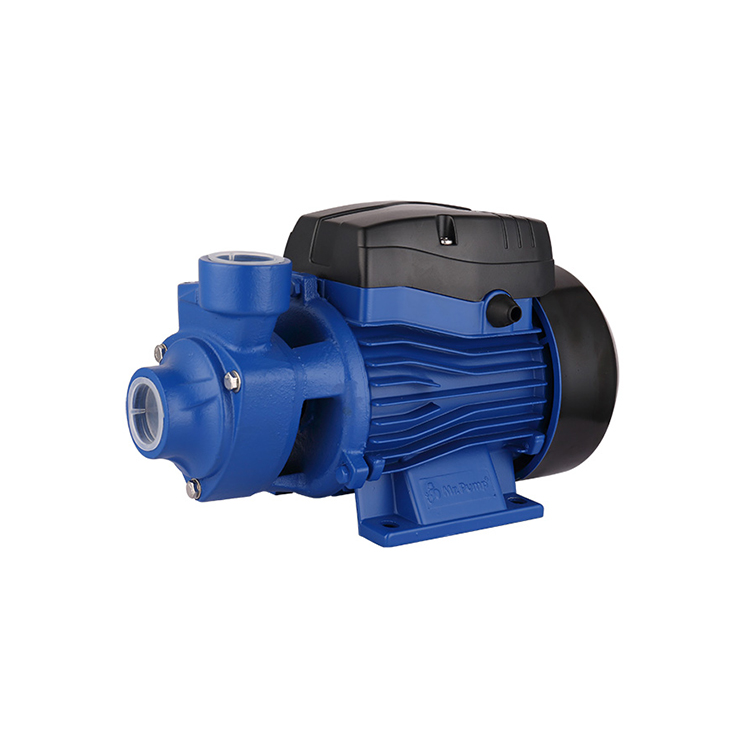

QB vortex pump-(2)

Performance Range：
Flow rate up to 60L/min（3.6m/h）
Operating Limits：
Suction liftupto 9m
Fluid temperature upto 60℃
Maximum ambient temperature 40℃
Standard Data And Equipment：
Single phase 220V/50Hz.Brass impeller，carbon steel motor shaft，with themal protector inside.Other model and material such as three phase，110V，60Hz，dual voltage stainless shaft，ect，will be available upon request.
+86-18869976464 Contact Us
  • Description
  • inquiry

  • 型号

    MODEL

    功率

    POWER

    KW/HP

    最高扬程

    HIGHEST HEAD (m)

    最大流量

    MAX.CAPACITY

    (L/min)

    口径

    Inlet/Outlet

    (inch)

    吸程

    Sact Lift

    (m)

    重量

    N.M

    (kg)

    QB/1-60

    0.37/0.5

    36

    36

    1"X1"

    9

    5.5

    QB/2-70

    0.55/0.75

    50

    50

    1"X1"

    9

    8.5

    QB/3-80

    0.75/1

    60

    60

    1"X1"

    9

    9
    Company Profile

    Zhejiang Shuyilin Electromechanical Co., Ltd.Our Company Mainly Deals In Water Pumps.The company has many years of experience in the production of small, QB vortex pump-(2) and medium-sized motor water pumps.The product specifications are complete and diverse, the design is advanced, the materials are selected, the technology is advanced and unique, and it has the advantages of excellent performance, safe and reliable use, and durability. It has won unanimous praise from customers at home and abroad.

    The company mainly produces submersible pumps, deep well pumps, sewage pumps, self-priming pumps, screw pumps, multi-stage submersible pumps, canned motor pumps and more than a dozen series and more than 300 products.All national standard motors, the head and flow are actually marked, the movement adopts high-grade all copper wire and cold-rolled silicon steel strip, wide voltage, low temperature rise, longer life, higher efficiency, and more power! Long-lasting uninterrupted operation without pressure!
