2.Medium pH value between 6.5~8.5
3.Containing solid impurities in the medium volume ratio
of not more than 0.1%
4.Diving depth of up to 100m
5.Only pumping water pump
The company firmly believes that science and technology are the primary productive forces. Rely on quality for survival, rely on technological innovation for development.
+86-18869976464 Contact Us(Model) | Flow (m³/h) |
Lift (m) |
Power (Kw) |
Voltage (V) |
Frequency (Hz) |
Rotating speed (r/min) |
Piping (mm) |
QDX1.5-16-0.37 | 1.5 | 16 | 0.37 | 220 | 50 | 2860 | 25 |
QDX2-18-0.4 | 2 | 18 | 0.4 | 220 | 50 | 2860 | 25 |
QDX1.5-20-0.55 | 1.5 | 20 | 0.55 | 220 | 50 | 2860 | 25 |
QDX3-20-0.55 | 3 | 20 | 0.55 | 220 | 50 | 2860 | 25 |
QDX7-14-0.55 | 7 | 14 | 0.55 | 220 | 50 | 2860 | 40 |
QDX3-24-0.75 | 3 | 24 | 0.75 | 220 | 50 | 2860 | 25 |
QDX3-28-0.75 | 3 | 28 | 0.75 | 220 | 50 | 2860 | 25 |
QDX1.5-33-0.75 | 1.5 | 33 | 0.75 | 220 | 50 | 2860 | 25 |
QDX7-18-0.75 | 7 | 18 | 0.75 | 220 | 50 | 2860 | 40 |
QDX10-18-0.75 | 10 | 18 | 0.75 | 220 | 50 | 2860 | 50 |
QDX1.5-32-1.1 | 1.5 | 32 | 1.1 | 220 | 50 | 2860 | 25 |
QDX2-32-1.1 | 2 | 32 | 1.1 | 220 | 50 | 2860 | 25 |
QDX8-28-1.1 | 8 | 28 | 1.1 | 220 | 50 | 2860 | 50 |
QDX10-20-1.1 | 10 | 20 | 1.1 | 220 | 50 | 2860 | 50 |
QDX20-15-1.1 | 20 | 15 | 1.1 | 220 | 50 | 2860 | 65 |
QDX15-28-1.5 | 15 | 28 | 1.5 | 220 | 50 | 2860 | 50 |
QDX25-15-1.5 | 25 | 15 | 1.5 | 220 | 50 | 2860 | 65 |
QDX35-10-1.5 | 35 | 10 | 1.5 | 220 | 50 | 2860 | 75 |
QDX55-10-2.2 | 55 | 10 | 2.2 | 380 | 50 | 2860 | 100 |
QX1.5-16-0.37 | 1.5 | 16 | 0.37 | 380 | 50 | 2860 | 25 |
QX2-18-0.4 | 2 | 18 | 0.4 | 380 | 50 | 2860 | 25 |
QX1.5-20-0.55 | 1.5 | 20 | 0.55 | 380 | 50 | 2860 | 25 |
QX3-20-0.55 | 3 | 20 | 0.55 | 380 | 50 | 2860 | 25 |
QX7-14-0.55 | 7 | 14 | 0.55 | 380 | 50 | 2860 | 40 |
QX3-24-0.75 | 3 | 24 | 0.75 | 380 | 50 | 2860 | 25 |
QX3-28-0.75 | 3 | 28 | 0.75 | 380 | 50 | 2860 | 25 |
QX1.5-33-0.75 | 1.5 | 33 | 0.75 | 380 | 50 | 2860 | 25 |
QX7-18-0.75 | 7 | 18 | 0.75 | 380 | 50 | 2860 | 40 |
QX10-18-0.75 | 10 | 18 | 0.75 | 380 | 50 | 2860 | 50 |
QX1.5-32-1.1 | 1.5 | 32 | 1.1 | 380 | 50 | 2860 | 25 |
QX2-32-1.1 | 2 | 32 | 1.1 | 380 | 50 | 2860 | 25 |
QX8-28-1.1 | 8 | 28 | 1.1 | 380 | 50 | 2860 | 50 |
QX10-20-1.1 | 10 | 20 | 1.1 | 380 | 50 | 2860 | 50 |
QX20-15-1.1 | 25 | 15 | 1.1 | 380 | 50 | 2860 | 65 |
QX15-28-1.5 | 15 | 28 | 1.5 | 380 | 50 | 2860 | 50 |
QX25-15-1.5 | 25 | 15 | 1.5 | 380 | 50 | 2860 | 65 |
QX35-10-1.5 | 35 | 10 | 1.5 | 380 | 50 | 2860 | 75 |
QX55-10-2.2 | 55 | 10 | 2.2 | 380 | 50 | 2860 | 100 |
QDX1.5-16-0.37(T) | 1.5 | 16 | 0.37 | 220 | 50 | 2860 | 25 |
QDX2-18-0.4(T) | 2 | 18 | 0.4 | 220 | 50 | 2860 | 25 |
QDX3-18-0.55(T) | 1.5 | 18 | 0.55 | 220 | 50 | 2860 | 25 |
QDX3-24-0.75(T) | 3 | 24 | 0.75 | 220 | 50 | 2860 | 25 |
QDX15-10-0.75(T) | 7 | 10 | 0.75 | 220 | 50 | 2860 | 25 |
QDX2-36-1.1(T) | 3 | 36 | 1.1 | 220 | 50 | 2860 | 25 |
1.Medium temperature not more than +40℃2.Medilum pH value between 5 and 93.The volume ratio of sol
See DetailsCONDITION 1.Medium temperature is not more than +40 DEGC2.Medium PH value between 6.5~8.53.Contain
See Details1.Medium temperature is not more than +40 DEGC2、Medium pH value between 6.5~8.53.Containing solid
See DetailsPerformance Range: Flow rate up to 80L/min(4.8m/h) Head upto 55m Operating Limits: Suction l
See Details1.Medium temperature not more than +40℃2.Medilum pH value between 5 and 93.The volume ratio of sol
See Details(VSm180F) CONDITION: 1.Medium temperature is not more than +40 DEGC2.Medium pH value
See Details1. The volume ratio of solid impurities in the mecdium shall not exceed 0.1%, and the particle s
See DetailsMaterial Casing:Cast lron Impeller:Brass Shaft:Crstainless lron MSeal:Carbon&Ceramic High-tem
See DetailsCONDITION: 1.the maximum working pressure of the system is1.6Mpa2.foreign solids volume not exceed
See DetailsZhejiang Shuyilin Electromechanical Co., Ltd. is a modern new-type water pumps manufacturing enterprise specializing in production, scientific research, development, sales and service.
Copyright © Zhejiang Shuyilin Electromechanical Co., Ltd. All Rights Reserved.

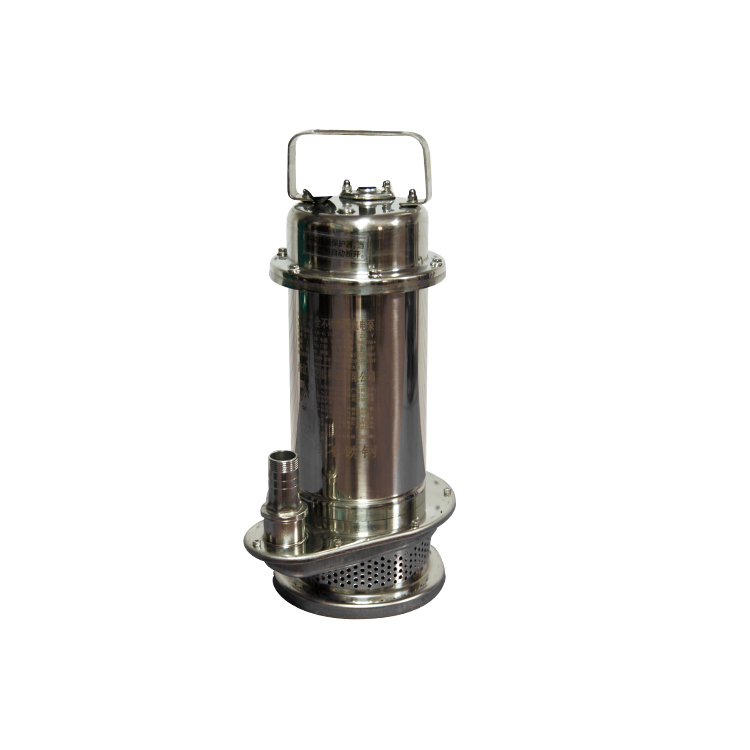

Custom 550W Stainless steel submersible pump Suppliers Login
