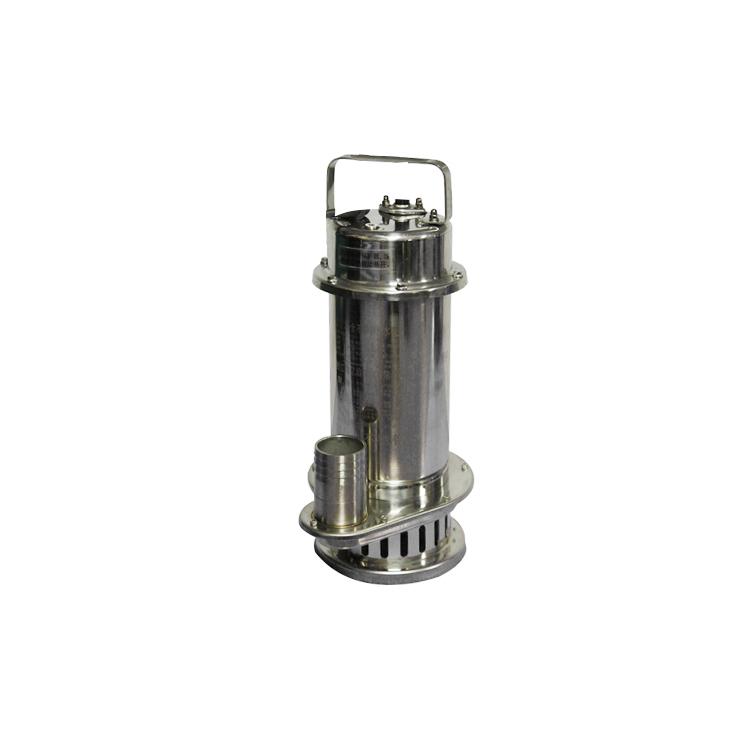

750W stainless steel submersible pump

CONDITION：

1.Medium temperature is not more than +40 DEGC
2.Medium pH value between 6.5～8.5
3.Containing solid impurities in the medium volume ratio
of not more than 0.1%
4.Diving depth of up to 100m
5.Only pumping water pump

+86-18869976464 Contact Us

Description
inquiry

（Model）	Flow (m³/h)	Lift (m)	Power (Kw)	Voltage (V)	Frequency (Hz)	Rotating speed (r/min)	Piping (mm)
QDX1.5-16-0.37	1.5	16	0.37	220	50	2860	25
QDX2-18-0.4	2	18	0.4	220	50	2860	25
QDX1.5-20-0.55	1.5	20	0.55	220	50	2860	25
QDX3-20-0.55	3	20	0.55	220	50	2860	25
QDX7-14-0.55	7	14	0.55	220	50	2860	40
QDX3-24-0.75	3	24	0.75	220	50	2860	25
QDX3-28-0.75	3	28	0.75	220	50	2860	25
QDX1.5-33-0.75	1.5	33	0.75	220	50	2860	25
QDX7-18-0.75	7	18	0.75	220	50	2860	40
QDX10-18-0.75	10	18	0.75	220	50	2860	50
QDX1.5-32-1.1	1.5	32	1.1	220	50	2860	25
QDX2-32-1.1	2	32	1.1	220	50	2860	25
QDX8-28-1.1	8	28	1.1	220	50	2860	50
QDX10-20-1.1	10	20	1.1	220	50	2860	50
QDX20-15-1.1	20	15	1.1	220	50	2860	65
QDX15-28-1.5	15	28	1.5	220	50	2860	50
QDX25-15-1.5	25	15	1.5	220	50	2860	65
QDX35-10-1.5	35	10	1.5	220	50	2860	75
QDX55-10-2.2	55	10	2.2	380	50	2860	100
QX1.5-16-0.37	1.5	16	0.37	380	50	2860	25
QX2-18-0.4	2	18	0.4	380	50	2860	25
QX1.5-20-0.55	1.5	20	0.55	380	50	2860	25
QX3-20-0.55	3	20	0.55	380	50	2860	25
QX7-14-0.55	7	14	0.55	380	50	2860	40
QX3-24-0.75	3	24	0.75	380	50	2860	25
QX3-28-0.75	3	28	0.75	380	50	2860	25
QX1.5-33-0.75	1.5	33	0.75	380	50	2860	25
QX7-18-0.75	7	18	0.75	380	50	2860	40
QX10-18-0.75	10	18	0.75	380	50	2860	50
QX1.5-32-1.1	1.5	32	1.1	380	50	2860	25
QX2-32-1.1	2	32	1.1	380	50	2860	25
QX8-28-1.1	8	28	1.1	380	50	2860	50
QX10-20-1.1	10	20	1.1	380	50	2860	50
QX20-15-1.1	25	15	1.1	380	50	2860	65
QX15-28-1.5	15	28	1.5	380	50	2860	50
QX25-15-1.5	25	15	1.5	380	50	2860	65
QX35-10-1.5	35	10	1.5	380	50	2860	75
QX55-10-2.2	55	10	2.2	380	50	2860	100
QDX1.5-16-0.37(T)	1.5	16	0.37	220	50	2860	25
QDX2-18-0.4(T)	2	18	0.4	220	50	2860	25
QDX3-18-0.55(T)	1.5	18	0.55	220	50	2860	25
QDX3-24-0.75(T)	3	24	0.75	220	50	2860	25
QDX15-10-0.75(T)	7	10	0.75	220	50	2860	25
QDX2-36-1.1(T)	3	36	1.1	220	50	2860	25

Company Profile

Zhejiang Shuyilin Electromechanical Co., Ltd.Our Company Mainly Deals In Water Pumps.The company has many years of experience in the production of small, 750W stainless steel submersible pump and medium-sized motor water pumps.The product specifications are complete and diverse, the design is advanced, the materials are selected, the technology is advanced and unique, and it has the advantages of excellent performance, safe and reliable use, and durability. It has won unanimous praise from customers at home and abroad.

The company mainly produces submersible pumps, deep well pumps, sewage pumps, self-priming pumps, screw pumps, multi-stage submersible pumps, canned motor pumps and more than a dozen series and more than 300 products.All national standard motors, the head and flow are actually marked, the movement adopts high-grade all copper wire and cold-rolled silicon steel strip, wide voltage, low temperature rise, longer life, higher efficiency, and more power! Long-lasting uninterrupted operation without pressure!
