  • QJ9A0812
  • QJ9A0812

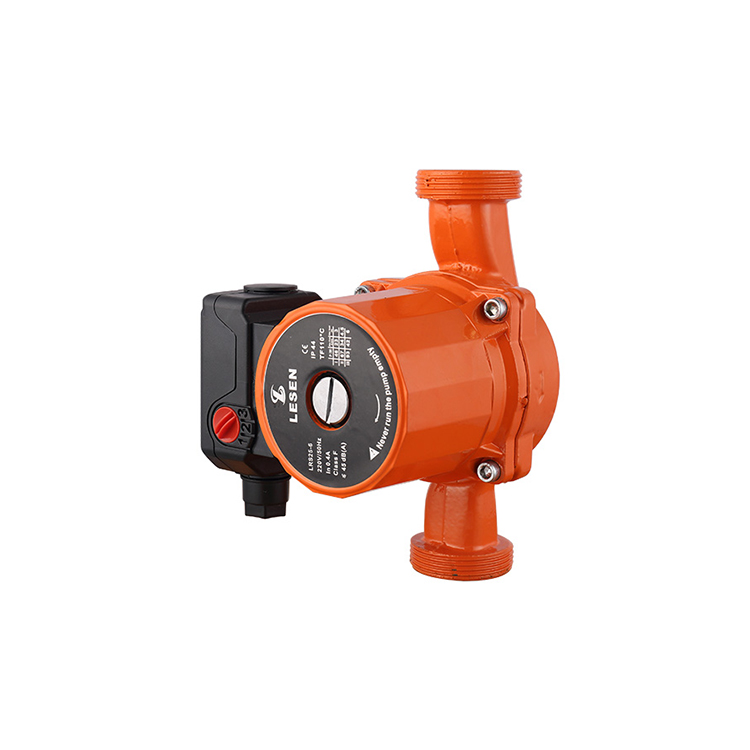

QJ9A0812

Pump Body:Cast iron
Rotor Can:Stainless Steel
Bearing:Ceramic/Graphite
Impeller:PP/Stainless Steel
Shaft:Ceramic/Stainless Steel
Insulation Class:F
Motor Housing:Aluminium
Back Plate:Stainless Steel
Protection Class:IP 44
+86-18869976464 Contact Us
  • Description
  • inquiry
  • （Model） Power
    (W)    		 Voltage
    (V)    		 Frequency
    (Hz)    		 Connection size
    (IN)    		 Rotating speed
    (r/min)    		 Maximum lift
    (m)    		 Maximum flow
    (L/min)    		 Inlet/Outlet
    (IN)    		 NW
    (Kg)
    LRS12/9-Z 120 110-127 220-240 50/60 3/4*1/2" 2580/3300 9 15
    LRS12/11-2 200 110-127 220-240 50/60 3/4**1/2" 2580/3300 11 20
    LRS20/15-Z 260 110-127 220-240 50/60 1**3/4" 2580/3300 15 45
    LRS12/9-ZG 100 110-127 220-240 50/60 3/4**1/2" 2520/3300 9 15
    LRS15/9-ZG 100 110-127 220-240 50/60 1"3/4" 2520/3300 9 30
    LRS15/12-ZG 200 110-127 220-240 50/60 1*3/4" 2520/3300 12 45
    LRS15/15-ZG 300 110-127 220-240 50/60 1*"3/4" 2520/3300 15 55
    LRS12/9-Z 100 110-127220-240 50/60 3/4"X1/2" 2520/3330 9 15
    LRS15/9-Z 100 110-127220-240 50/60 1"X3/4" 2520/3330 9 30
    LRS15/12-Z 200 110-127220-240 50/60 1"X3/4" 2520/3330 12 45
    LRS15/15-Z 300 110-127 220-240 50/60 1"X3/4" 2520/3330 15 55
    LRS15/4 72/53/38 4.5/4/3 39/29/18 1" 2.1
    LRS25/4-130 72/53/38 4.5/4/3 49/35/21 1%" 2.2
    LRS25/4-180 72/53/38 4.5/4/3 57/39/21 1%" 2.4
    LRS32/4 72/53/38 4.5/4/3 66/44/22 2" 2.6
    LRS15/6 93/67/46 2006/5/3 48/35/21 1" 2.3
    LRS20/6 93/67/46 2006/5/3 55/38/22 1%" 2.4
    LRS25/6-130 93/67/46 2006/5/3 55/38/22 1%" 2.4
    LRS25/6-180 93/67/46 2006/5/3 69/48/26 1%" 2.6
    LRS32/6 93/67/46 2006/5/3 70/48/26 2" 2.8
    LRS15/7 135/93/67 2007/6/5 55/45/29 1" 2.6
    LRS25/7-130 135/93/67 7/6.5/4.5 64/51/32 1%" 2.8
    LRS26/7-180 135/93/67 7/6.5/4.5 69/54/35 1%" 2.9
    LRS32/7 135/93/67 7/6.5/4.5 70/56/36 2" 3.1
    LRS15/8 165/115/75 2008/7/5 65/42/22 1" 3.3
    LRS15/8 165/115/75 2008/7/5 98/63/36 1%" 3.4
    LRS25/8 270/210/150 8/7.5/65 160/103/43 2" 4.8
    LRS32/8 165/115/75 11/7/3.4 35/20/10 1" 3.9
    LRS20/11 245/220/145 2012/11/7 52/32/22 1" 4.5
    LRS20/12 245/220/145 2012/11/7 62/37/23 1%" 4.5
    LRS25/12 270/210/150 14/13/10 68/48/28 1%" 5.1
    Company Profile

    Zhejiang Shuyilin Electromechanical Co., Ltd.Our Company Mainly Deals In Water Pumps.The company has many years of experience in the production of small, QJ9A0812 and medium-sized motor water pumps.The product specifications are complete and diverse, the design is advanced, the materials are selected, the technology is advanced and unique, and it has the advantages of excellent performance, safe and reliable use, and durability. It has won unanimous praise from customers at home and abroad.

    The company mainly produces submersible pumps, deep well pumps, sewage pumps, self-priming pumps, screw pumps, multi-stage submersible pumps, canned motor pumps and more than a dozen series and more than 300 products.All national standard motors, the head and flow are actually marked, the movement adopts high-grade all copper wire and cold-rolled silicon steel strip, wide voltage, low temperature rise, longer life, higher efficiency, and more power! Long-lasting uninterrupted operation without pressure!
