IP 44 WZB Automatic Cold And Hot Self-Priming Pump Suppliers

Home / Product / Road Ground Pump / IP 44 WZB Automatic Cold And Hot Self-Priming Pump

PDF Download

How Can We Help You ?

The company firmly believes that science and technology are the primary productive forces. Rely on quality for survival, rely on technological innovation for development.

+86-18869976464 Contact Us
  • IP 44 WZB Automatic Cold And Hot Self-Priming Pump
  • IP 44 WZB Automatic Cold And Hot Self-Priming Pump

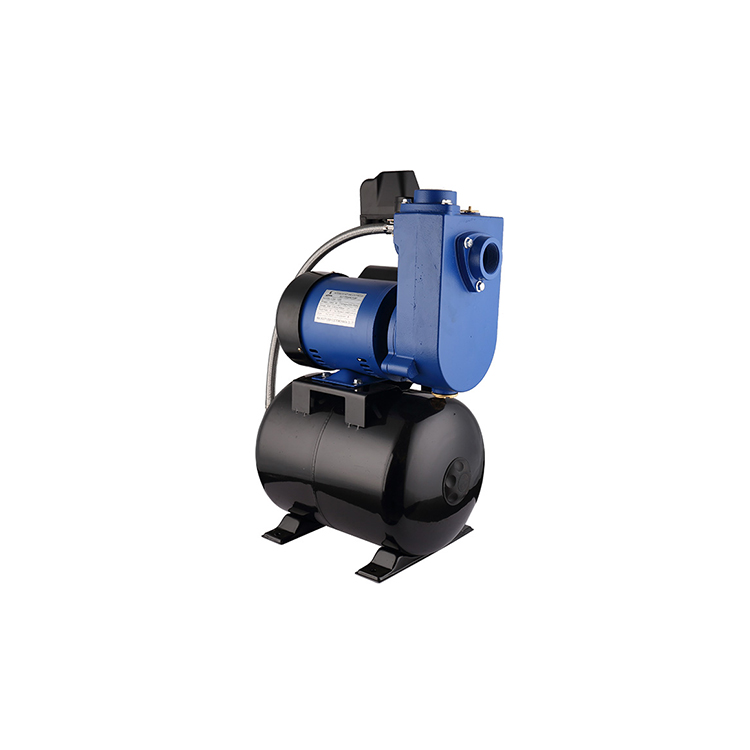

IP 44 WZB Automatic Cold And Hot Self-Priming Pump

Material:
Pumo body:Cast iron（HT200）
Motor support:Aluminum
Impeller:Brass
Motor shaft:CS 45#or stainless steel
Mechanical seal:Ceramic +Silioon carbide
100%Copper Winding
Motor:
2 pole induction motor
Single phase 220v，50/60Hz
Insulation:Class B/ClassF
Protection IP 44
With capacitor and thermal overload protection.
+86-18869976464 Contact Us
  • Description
  • inquiry

  • （Model）

    Power

    (W)

    Volt

    (V/Hz)

    Speed

    (r/min)

    Max Flow

    (l/min)

    Max Delivery

    (m)

    Sact Lift

    (m)

    Inlet/outlet

    （mm）

    Weight

    （kg）

    25WZB-15-125A

    125

    220,50Hz

    2860

    25

    20

    8

    25（1"）

    10.5

    25WZB-15-200A

    200

    220,50Hz

    2860

    28

    25

    8

    25（1"）

    11.5

    25WZB-18-300A

    300

    220,50Hz

    2860

    30

    30

    8

    25（1"）

    12

    25WZB-20-400A

    400

    220,50Hz

    2860

    35

    35

    8

    25（1"）

    13.8

    25WZB-23-600A

    600

    220,50Hz

    2860

    40

    40

    8

    25（1"）

    14

    25WZB-25-800A

    800

    220,50Hz

    2860

    45

    45

    8

    25（1"）

    16.7

    25WZB-28-1100A

    1100

    220,50Hz

    2860

    50

    50

    8

    40（1½"）

    17
    Company Profile

    Zhejiang Shuyilin Electromechanical Co., Ltd.Our Company Mainly Deals In Water Pumps.The company has many years of experience in the production of small, IP 44 WZB Automatic Cold And Hot Self-Priming Pump and medium-sized motor water pumps.The product specifications are complete and diverse, the design is advanced, the materials are selected, the technology is advanced and unique, and it has the advantages of excellent performance, safe and reliable use, and durability. It has won unanimous praise from customers at home and abroad.

    The company mainly produces submersible pumps, deep well pumps, sewage pumps, self-priming pumps, screw pumps, multi-stage submersible pumps, canned motor pumps and more than a dozen series and more than 300 products.All national standard motors, the head and flow are actually marked, the movement adopts high-grade all copper wire and cold-rolled silicon steel strip, wide voltage, low temperature rise, longer life, higher efficiency, and more power! Long-lasting uninterrupted operation without pressure!
