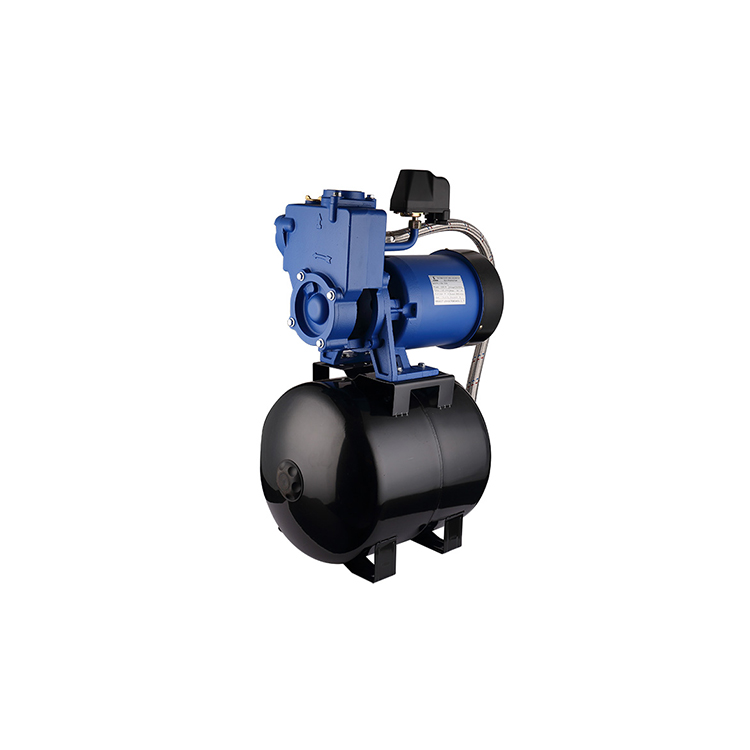

Cast Iron WZB Automatic Cold And Hot Self-Priming Pump

Material:
Pumo body:Cast iron（HT200）
Motor support:Aluminum
Impeller:Brass
Motor shaft:CS 45#or stainless steel
Mechanical seal:Ceramic +Silioon carbide
100%Copper Winding
Motor:
2 pole induction motor
Single phase 220v，50/60Hz
Insulation:Class B/ClassF
Protection IP 44
With capacitor and thermal overload protection.
+86-18869976464 Contact Us
  • Description
  • inquiry

  • （Model）

    Power

    (W)

    Volt

    (V/Hz)

    Speed

    (r/min)

    Max Flow

    (l/min)

    Max Delivery

    (m)

    Sact Lift

    (m)

    Inlet/outlet

    （mm）

    Weight

    （kg）

    25WZB-15-125A

    125

    220,50Hz

    2860

    25

    20

    8

    25（1"）

    10.5

    25WZB-15-200A

    200

    220,50Hz

    2860

    28

    25

    8

    25（1"）

    11.5

    25WZB-18-300A

    300

    220,50Hz

    2860

    30

    30

    8

    25（1"）

    12

    25WZB-20-400A

    400

    220,50Hz

    2860

    35

    35

    8

    25（1"）

    13.8

    25WZB-23-600A

    600

    220,50Hz

    2860

    40

    40

    8

    25（1"）

    14

    25WZB-25-800A

    800

    220,50Hz

    2860

    45

    45

    8

    25（1"）

    16.7

    25WZB-28-1100A

    1100

    220,50Hz

    2860

    50

    50

    8

    40（1½"）

    17
