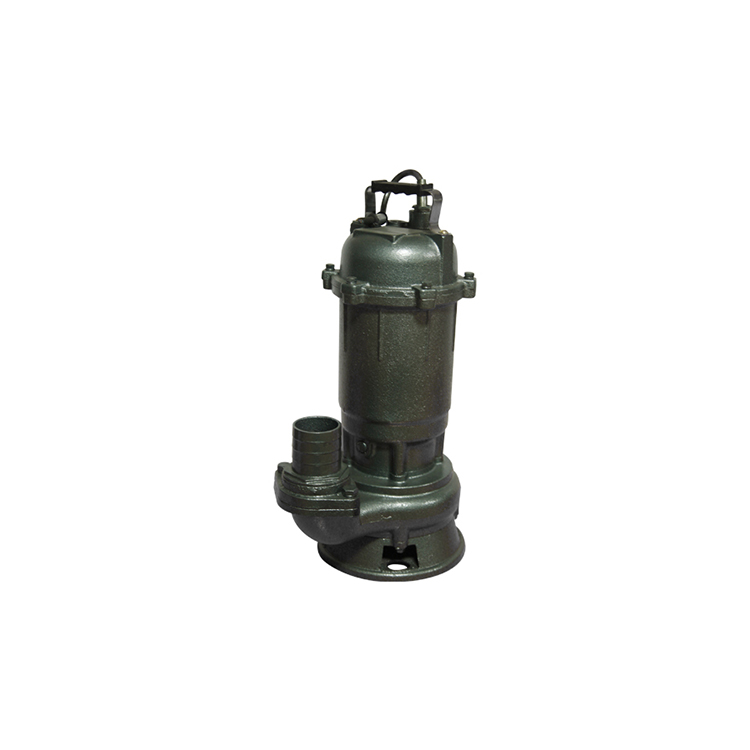

Sewage Pump That Can Dive 5M

1.Medium temperature not more than +40℃
2.Medilum pH value between 5 and 9
3.The volume ratio of solid impuritles in the medium shall not exceed 2%
4.Maximum diving depth not exceeding 5m
5.The operation time of motor dehydration should not be too long
+86-18869976464 Contact Us
  • Description
  • inquiry
  • （Model） Flow
    (m³/h)    		 Lift
    (m)    		 Power
    (Kw)    		 Voltage
    (V)    		 Frequency
    (Hz)
    Rotating speed
    (r/min)    		 Piping
    (mm)
    50JYWQD10-10-1000-0.75 10 10 0.75 220 50 1000 50
    50JYWQ10-10-1000-0.75 10 10 0.75 380 50 1000 50
    50JYWQD7-15-1200-1.1 7 15 1.1 220 50 1200 50
    50JYWQ7-15-1200-1.1 7 15 1.1 380 50 1200 50
    65JYWQD15-9-1200-1.1 15 9 1.1 220 50 1200 65
    65JYWQ15-9-1200-1.1 15 9 1.1 380 50 1200 65
    50JYWQD15-15-1200-1.5 15 15 1.5 220 50 1200 50
    50JYWQ15-15-1200-1.5 15 15 1.5 380 50 1200 50
    65JYWQD25-10-1200-1.5 25 10 1.5 380 50 1200 65
    65JYWQ25-10-1200-1.5 25 10 1.5 380 50 1200 65
    50JYWQ9-22-1600-2.2 9 22 2.2 380 50 1600 50
    65JYWQ25-15-1600-2.2 25 12 2.2 380 50 1600 65
    80JYWQ40-10-1600-2.2 40 10 2.2 380 50 1600 80
    100JYWQ50-7-1600-2.2 50 7 2.2 380 50 1600 100
    50JYWQ15-30-1600-3 15 30 3 380 50 1600 50
    65JYWQ20-30-1600-4 20 30 4 380 50 1600 65
    80JYWQ40-15-1600-4 40 15 4 380 50 1600 80
    100JYWQ60-10-1600-4 60 10 4 380 50 1600 100
    50JYWQ15-40-1600-5.5 15 40 5.5 380 50 1600 50
    65JYWQ25-35-1600-5.5 25 35 5.5 380 50 1600 65
    80JYWQ30-30-1600-5.5 30 30 5.5 380 50 1600 80
    100JYWQ70-10-1600-5.5 70 10 5.5 380 50 1600 100
    150JYWQ100-7-1600-5.5 100 7 5.5 380 50 1600 150
    50JYWQ15-45-1600-7.5 15 45 7.5 380 50 1600 50
    65JWYQ25-40-1600-7.5 25 40 7.5 380 50 1600 65
    80JYWQ65-22-1600-7.5 65 22 7.5 380 50 1600 80
    100JYWQ80-20-1600-7.5 80 20 7.5 380 50 1600 100
    150JYWQ100-10-1600-7.5 100 10 7.5 380 50 1600 150
    WQD6-16-0.75 6 16 0.75 220 50 2860 50
    WQ6-16-0.75 6 16 0.75 380 50 2860 50
    WQD8-18-1.1 8 18 1.1 220 50 2860 50
    WQ8-18-1.1 8 18 1.1 380 50 2860 50
    WQD8-16-1.1 8 16 1.1 220 50 2860 50
    WQ8-16-1.1 8 16 1.1 380 50 2860 50
    WQD8-26-1.1 8 26 1.1 220 50 2860 50
    WQ8-26-1.1 8 26 1.1 380 50 2860 50
    WQD10-16-1.1 10 16 1.1 220 50 2860 50
    WQ10-16-1.1 10 16 1.1 380 50 2860 50
    WQD12-18-1.5 12 18 1.5 220 50 2860 50
    WQ12-18-1.5 12 18 1.5 380 50 2860 50
    WQ015-18-1.5 15 18 1.5 220 50 2860 50
    WQ15-18-1.5 15 18 1.5 380 50 2860 50
    WQD8-20-1.5 8 20 1.5 220 50 2860 50
    WQ8-20-1.5 8 20 1.5 380 50 2860 50
    WQD15-15-1.5 15 15 1.5 220 50 2860 65
    WQ15-15-1.5 15 15 1.5 380 50 2860 65
    WQD30-10-1.5 30 10 1.5 220 50 2860 75
    WQ30-10-1.5 30 10 1.5 380 50 2860 75
    WQD8-40-1.5 8 40 1.5 220 50 2860 50
    WQ8-40-1.5 8 40 1.5 380 50 2860 50
    WQ10-30-2.2 10 30 2.2 380 50 3000 50
    WQ15-32-2.2 15 32 2.2 380 50 3000 50
    WQ20-25-2.2 20 25 2.2 380 50 3000 65
    WQ30-15-2.2 30 15 2.2 380 50 3000 75
    WQ15-36-3 15 36 3 380 50 3000 50
    WQK10-10-0.75QG 10 10 0.75 220/380 50 2860 50
    WQK15-9-1.10G 15 9 1.1 220/380 50 2860 50
    WQK15-15-1.50G 15 15 1.5 220/380 50 2860 50
    WQK26-7-1.50G 26 7 1.5 220/380 50 2860 80
    WQK18-20-2.20G 18 20 2.2 380 50 2860 50
    WQK25-15-2.20G 25 15 2.2 380 50 2860 65
    WQK30-10-2.20G 30 10 2.2 380 50 2860 80
    WQK20-25-3QG 20 25 3 380 50 2860 50
    WQK30-16-3QG 30 16 3 380 50 2860 65
    WQK35-15-3QG 35 15 3 380 50 2860 80
    WQK40-13-3QG 40 13 3 380 50 2860 100
    WQK25-28-4QG 25 28 4 380 50 2860 50
    WQK32-20-4QG 32 20 4 380 50 2860 65
    WQK42-16-4QG 42 16 4 380 50 2860 80
    WOK50-12-4QG 50 12 4 380 50 2860 100
    WQK25-40-5.5QG 25 40 5.5 380 50 2860 50
    WQK40-28-5.5QG 40 28 5.5 380 50 2860 65
    WQK60-18-5.5QG 60 18 5.5 380 50 2860 80
    WQK80-10-5.5QG 80 10 5.5 380 50 2860 100
    WQK50-22-7.5QG 50 22 7.5 380 50 2860 80
    WQK80-20-7.5QG 80 20 7.5 380 50 2860 100
    QX8-40-1.5 8 40 1.5 220/380 50 2860 50
    QX10-35-2.2 10 35 2.2 380 50 2860 50
    QX10-45-3 10 45 3 380 50 2860 50
    QX12-50-4 12 50 4 380 50 2860 50
    QX12.5-60-5.5 12.5 60 5.5 380 50 2860 50
    QX15-68-7.5 15 68 7.5 380 50 2860 50
