2.Medium pH value between 6.5~8.5
3.Containing solid impurities in the medium volume ratio
of not more than 0.1%
4.Diving depth of up to 100m
5.Only pumping water pump

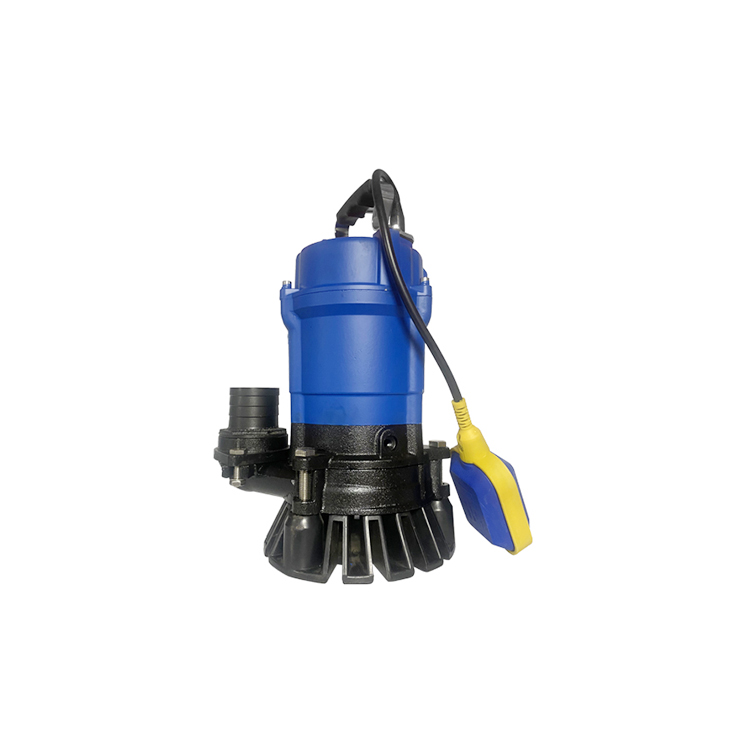

Welcome to Zhejiang Shuyilin Electromechanical Co., Ltd’s website! China HS2.4S Suppliers Custom HS2.4S Company
The company firmly believes that science and technology are the primary productive forces. Rely on quality for survival, rely on technological innovation for development.
+86-18869976464 Contact Us(Model) | Flow (m³/h) |
Lift (m) |
Power (Kw) |
Voltage (V) |
Frequency (Hz) |
Rotating speed (r/min) |
Piping (mm) |
QDX1.5-16-0.37 | 1.5 | 16 | 0.37 | 220 | 50 | 2860 | 25 |
QDX2-18-0.4 | 2 | 18 | 0.4 | 220 | 50 | 2860 | 25 |
QDX1.5-20-0.55 | 1.5 | 20 | 0.55 | 220 | 50 | 2860 | 25 |
QDX3-20-0.55 | 3 | 20 | 0.55 | 220 | 50 | 2860 | 25 |
QDX7-14-0.55 | 7 | 14 | 0.55 | 220 | 50 | 2860 | 40 |
QDX3-24-0.75 | 3 | 24 | 0.75 | 220 | 50 | 2860 | 25 |
QDX3-28-0.75 | 3 | 28 | 0.75 | 220 | 50 | 2860 | 25 |
QDX1.5-33-0.75 | 1.5 | 33 | 0.75 | 220 | 50 | 2860 | 25 |
QDX7-18-0.75 | 7 | 18 | 0.75 | 220 | 50 | 2860 | 40 |
QDX10-18-0.75 | 10 | 18 | 0.75 | 220 | 50 | 2860 | 50 |
QDX1.5-32-1.1 | 1.5 | 32 | 1.1 | 220 | 50 | 2860 | 25 |
QDX2-32-1.1 | 2 | 32 | 1.1 | 220 | 50 | 2860 | 25 |
QDX8-28-1.1 | 8 | 28 | 1.1 | 220 | 50 | 2860 | 50 |
QDX10-20-1.1 | 10 | 20 | 1.1 | 220 | 50 | 2860 | 50 |
QDX20-15-1.1 | 20 | 15 | 1.1 | 220 | 50 | 2860 | 65 |
QDX15-28-1.5 | 15 | 28 | 1.5 | 220 | 50 | 2860 | 50 |
QDX25-15-1.5 | 25 | 15 | 1.5 | 220 | 50 | 2860 | 65 |
QDX35-10-1.5 | 35 | 10 | 1.5 | 220 | 50 | 2860 | 75 |
QDX55-10-2.2 | 55 | 10 | 2.2 | 380 | 50 | 2860 | 100 |
QX1.5-16-0.37 | 1.5 | 16 | 0.37 | 380 | 50 | 2860 | 25 |
QX2-18-0.4 | 2 | 18 | 0.4 | 380 | 50 | 2860 | 25 |
QX1.5-20-0.55 | 1.5 | 20 | 0.55 | 380 | 50 | 2860 | 25 |
QX3-20-0.55 | 3 | 20 | 0.55 | 380 | 50 | 2860 | 25 |
QX7-14-0.55 | 7 | 14 | 0.55 | 380 | 50 | 2860 | 40 |
QX3-24-0.75 | 3 | 24 | 0.75 | 380 | 50 | 2860 | 25 |
QX3-28-0.75 | 3 | 28 | 0.75 | 380 | 50 | 2860 | 25 |
QX1.5-33-0.75 | 1.5 | 33 | 0.75 | 380 | 50 | 2860 | 25 |
QX7-18-0.75 | 7 | 18 | 0.75 | 380 | 50 | 2860 | 40 |
QX10-18-0.75 | 10 | 18 | 0.75 | 380 | 50 | 2860 | 50 |
QX1.5-32-1.1 | 1.5 | 32 | 1.1 | 380 | 50 | 2860 | 25 |
QX2-32-1.1 | 2 | 32 | 1.1 | 380 | 50 | 2860 | 25 |
QX8-28-1.1 | 8 | 28 | 1.1 | 380 | 50 | 2860 | 50 |
QX10-20-1.1 | 10 | 20 | 1.1 | 380 | 50 | 2860 | 50 |
QX20-15-1.1 | 25 | 15 | 1.1 | 380 | 50 | 2860 | 65 |
QX15-28-1.5 | 15 | 28 | 1.5 | 380 | 50 | 2860 | 50 |
QX25-15-1.5 | 25 | 15 | 1.5 | 380 | 50 | 2860 | 65 |
QX35-10-1.5 | 35 | 10 | 1.5 | 380 | 50 | 2860 | 75 |
QX55-10-2.2 | 55 | 10 | 2.2 | 380 | 50 | 2860 | 100 |
QDX1.5-16-0.37(T) | 1.5 | 16 | 0.37 | 220 | 50 | 2860 | 25 |
QDX2-18-0.4(T) | 2 | 18 | 0.4 | 220 | 50 | 2860 | 25 |
QDX3-18-0.55(T) | 1.5 | 18 | 0.55 | 220 | 50 | 2860 | 25 |
QDX3-24-0.75(T) | 3 | 24 | 0.75 | 220 | 50 | 2860 | 25 |
QDX15-10-0.75(T) | 7 | 10 | 0.75 | 220 | 50 | 2860 | 25 |
QDX2-36-1.1(T) | 3 | 36 | 1.1 | 220 | 50 | 2860 | 25 |
